A Practical Guide to Connecting MCU to FPGA for Enhanced Functionality

Microcontrollers have been the foundation of embedded processors for many years. According to Grand View Research, in 2024, global MCU revenue was estimated at about USD 36.2 billion, with forecasts projecting growth to over USD 105 billion by 2033 at a compound annual growth rate (CAGR) of ≈12.8 %. Inexpensive, energy-efficient, and relatively easy to use, they have enabled a vast range of applications. The problem arises when timing requirements begin to outpace the capabilities of sequential code execution. In such situations, a natural question emerges: is this the moment to reach for an FPGA?

The following text shows where the practical limits of MCUs lie, when architectural scaling becomes a necessity, and how to recognize the point at which software logic should give way to hardware logic. This is not an article about abandoning MCUs, but about deliberately expanding the toolbox when system requirements start to dictate new rules of the game in a particular application.

Need Professional Embedded Design Services?
Our Hardware Design team has over 10 years of experience designing embedded systems for automotive, medtech, and IoT industries. We offer comprehensive services – from concept to production.

Schedule a Free Consultation

When a micro controller stops being enough

A microcontroller works well as long as the system can tolerate a certain degree of temporal unpredictability. The problem arises when processing frequency increases and timing requirements stop being “soft.” Even high-performance MCUs, such as Cortex-M7 devices clocked at 300–600 MHz, remain fundamentally sequential architectures in which every operation competes for CPU time with interrupt handling, peripheral access, and system overhead. As Donald Knuth, Recipient of the ACM Turing Award, famously observed: “time is the most precious resource in a computing system, and managing it explicitly is often harder than managing space”.

As a result, latency is no longer constant, and jitter becomes an inherent property of the platform rather than an implementation flaw. At this stage, the project often still “works”, but it becomes increasingly difficult to reason about it in terms of guaranteed response times. Code starts to rely on implicit timing assumptions that are not formally enforceable. A small configuration change, a different interrupt order, or an additional background task consuming even 5–10% CPU time can disrupt system behavior in ways that are hard to predict and even harder to debug.

The natural reaction is further optimization:

  • manual loop unrolling,
  • abandoning abstractions,
  • pushing logic into interrupts.

Eventually, however, it becomes clear that the limitation is not the code itself but the execution model. When the system becomes sensitive to individual clock cycles, overall timing margins narrow significantly. For example, if an external device expects a chip-select signal with setup and hold times below 10 ns and jitter under 2 ns, an MCU is no longer a scalable platform, regardless of how much effort is invested in optimization.

What really differentiates an FPGA from an MCU?

The difference between an MCU and an FPGA becomes evident at the level of what it means for an operation to execute in time. In a microcontroller, every function (regardless of its importance to the system) must be scheduled within a single chip stream of instructions. Even when an RTOS is used, concurrency is reduced to context switching, and response time depends on worst-case interrupt handling and critical sections. Determinism therefore has a statistical character. It can be estimated, but not guaranteed for every execution path.

In an FPGA, processing is defined as a set of parallel logic blocks operating concurrently and synchronized by one or more clocks. Each block has a fixed latency expressed in clock cycles, independent of the activity of other blocks. There is no mechanism that can “steal time” from another part of the logic, because there is no shared execution resource equivalent to a CPU core.

This approach allows time to be treated as a property of the structure itself, rather than a byproduct of program execution. If an operation has a latency of three clock cycles, it will always be exactly three cycles, without exceptions or corner cases. In this sense, FPGA logic is genuinely an “algorithm in silicon”. The algorithm is mapped onto registers, combinational logic, and interconnects, and its temporal behavior can be verified at synthesis time through timing analysis. Comparative tests conducted by Intel show that while MCU-based systems achieve determinism in approximately 95–99% of cases, FPGAs provide 100% determinism for all timing-compliant paths. This characteristic, rather than raw speed, is what gives FPGAs their advantage in high-frequency processing systems.

Key characteristic

MCU

FPGA

Processing model

Sequential

Parallel, hardware-based

Minimum latency

High and variable

Low and constant

Timing jitter

Inherent

Negligible

High-frequency handling

Marginal

Native

Stream processing

Limited

Pipelined, full throughput

Timing guarantees

Estimated (WCET)

Formal (static timing analysis)

If you would like to explore the topic of FPGA in more depth, we encourage you to read the article:

What is Field-Programmable Gate Array (FPGA) and why is it used in hardware?

Decision criteria: When an FPGA is not a good idea

An FPGA is not a universal solution, and in many projects, its use not only fails to bring benefits but can actually degrade the overall system quality. If processing is not hard real-time and the requirements for latency and jitter fall within the predictable limits of an MCU or DSP, moving to an FPGA is usually not technically justified. This is particularly true for control- and decision-oriented algorithms, as well as designs dominated by complex conditional logic. In such cases, flexibility and ease of modification are often more important than cycle-accurate determinism. It’s also worth asking a simple but critical question: are we solving a real timing problem, or compensating for an architectural decision that was never the right fit? In many scenarios, a specialized DSP or a modern MCU with hardware accelerators is the simpler and more appropriate choice. David Patterson (one of the founders of modern computer architecture as an academic discipline) cautions that “architectural complexity should only be introduced when it directly eliminates a fundamental bottleneck”.

Another important factor is the cognitive and technical cost of FPGA development. Designing hardware logic requires:

  • a different skill set,
  • longer development cycles,
  • rigorous timing verification.

Errors are harder to detect and often emerge only during hardware integration. IEEE analyses indicate that FPGA projects reach their first working prototype on average 2–3 times later than MCU-based projects, and that approximately 40% of logic errors are only discovered during the hardware integration stage. For teams with a strong software background, this represents a real risk to schedule and delivery.

Overusing an FPGA can also lead to unnecessary architectural complexity. The system becomes harder to maintain, less adaptable to changing requirements, and more prone to integration issues. If true parallelism and hard determinism are not critical, a simpler platform will usually result in a more robust and efficient final solution.

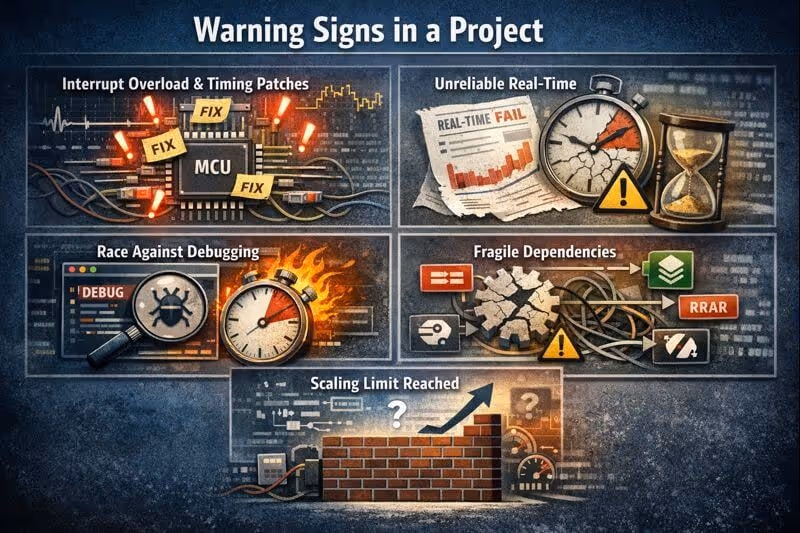

The transition point: Warning signs in a project

  1. A growing number of interrupts and “timing patches.”
    One of the first clear warning signs appears when system architecture starts being shaped by timing issues rather than functional logic. Additional interrupts are introduced, priorities are adjusted, manual delays are added, and code fragments emerge whose sole purpose is to “keep the timing intact.” The system still works, but it increasingly relies on fragile assumptions: a specific order of events, the absence of contention, or ideal load conditions. This is a typical symptom of reaching the practical limits of the MCU execution model.
  2. Hard real-time that can no longer be guaranteed
    At this stage, the project often still formally meets hard real-time requirements, but only “on paper.” Worst-case execution time analysis becomes increasingly theoretical as the number of exceptions, corner cases, and system-level dependencies grows. A single delay can break timing guarantees even though average execution times remain acceptable. This indicates that determinism no longer comes from the architecture itself, but from caution and, to some extent, luck.
  3. When debugging becomes a race against time
    The most costly symptom is the moment when debugging turns into a pursuit of effects that are difficult to reproduce. Errors disappear when a debugger is attached, change with different compiler optimizations, or occur only under real deployment conditions. The team spends more and more time analyzing timing behavior instead of developing functionality.
  4. Increasing dependence on implementation details
    Another warning sign is when correct timing behavior starts to depend on details that should not be architecturally significant. A compiler version change, a different optimization level, a small modification in an unrelated module, or a library update causes timing shifts that affect overall system behavior. This indicates that the timing margin has effectively been exhausted and the system no longer has a safety buffer. In such a state, maintaining stability becomes increasingly difficult, and the risk of regressions grows with each iteration.
  5. Inability to scale further without an architectural change
    The final signal is the point at which every new functional requirement automatically becomes a timing problem. Adding another measurement channel, increasing the sampling rate, or introducing additional decision logic requires reworking existing timing mechanisms. The design ceases to be scalable because the architecture has been optimized for a specific operating point rather than for growth.

Hybrid architectures: MCU + FPGA

A hybrid architecture combining both the microcontroller and an FPGA allows leveraging the strengths of these approaches without requiring a radical redesign of the entire system. It is no coincidence that the market is increasingly choosing hybrid architectures. According to Omdia, more than 60% of new high-performance embedded systems today use a combination of an MCU and an FPGA.

The key principle is a clear separation of responsibilities. The microcontroller acts as the control, configuration, and communication peripherals layer, while the FPGA handles time-critical, streaming, or high-frequency processing. The MCU therefore manages system states, protocols, decision logic, and the user interface, while the FPGA takes over tasks where cycle-accurate determinism is essential.

In practice, several well-established architectural patterns are commonly used. One of the most prevalent is the control-plane / data-plane model, in which the FPGA functions as a data accelerator and the MCU serves as the system controller. Another approach involves offloading selected parts of an algorithm to the fpga code while keeping the remaining logic in software. Designs where data streams are buffered in the FPGA and periodically “pulled” or consumed by the MCU are also widely used.

A critical aspect of such architectures is communication and synchronization between time domains. The FPGA and MCU typically operate under different timing regimes, which makes safe data transfer mechanisms essential. These include:

  • FIFOs,
  • double buffering,
  • handshake signals,
  • clearly defined temporal boundaries.

A well-designed external memory interface minimizes timing dependencies between domains, allowing the system to remain deterministic where required and flexible where beneficial.

SoC FPGA – a bridge between MCU and classic FPGA

A natural step after exceeding the limits of a microcontroller, but before fully migrating to a “pure” FPGA, is the SoC FPGA (System-on-Chip FPGA). This architecture combines a processor (most commonly ARM) with programmable FPGA logic in a single device, connected through shared buses and memory. In practice, this enables a clear division of responsibilities. Control, communication, and sequential logic remain on the CPU side, while high-frequency and massively parallel processing is handled by the programmable logic.

An SoC FPGA makes sense when an MCU can no longer meet timing requirements, but a full HDL-based implementation would be costly, risky, or unnecessarily complex. Typical use cases include:

  • high-throughput data acquisition,
  • digital signal processing (DSP),
  • protocols with strict timing constraints,
  • or custom hardware accelerators.

The FPGA fabric implements critical paths in a deterministic manner, while the processor manages the system using a familiar software development environment model.

Compared to MCUs, SoC FPGAs offer dramatically higher timing scalability and bandwidth. On the other hand, compared to traditional FPGAs, they lower the entry barrier by preserving access to operating systems, drivers, and established debugging workflows. However, this comes at the cost of higher system complexity, longer bring-up time, and the need for expertise in both software and hardware development. An SoC FPGA is not merely a “middle ground” compromise, but a deliberate hybrid architecture choice when the limits of an MCU become clearly visible. In practice, as stated in Embedded World Conference Papers, SoC FPGA allows for a 5–20× increase in processing throughput without requiring a complete redesign of the application layer.

Designing logic for high-frequency operation

Designing FPGA logic for high-frequency operation requires abandoning intuitions derived from sequential programming and adopting a hardware-oriented perspective. Pipelining and parallelization play a central role, enabling higher throughput without shortening individual critical paths. Instead of attempting to perform all processing in a single step, the algorithm is decomposed into stages separated by registers. Each stage performs a simple, well-defined operation, and data flows through the structure continuously. This approach not only increases the maximum achievable clock frequency but also eliminates bottlenecks caused by overly complex combinational logic.

Equally important is thinking in terms of clock cycles. In an FPGA, time is not an abstraction but a concrete property of the design. Every added register, every decision about bus width, and every ordering of operations directly affects latency and the ability to meet timing constraints. The designer must consciously decide how many cycles a given operation consumes and whether the system can tolerate that latency in exchange for higher frequency or improved stability.

Teams with a “software-first” mindset often make predictable mistakes. These include:

  • attempting to directly port CPU-oriented algorithms,
  • overusing conditional logic,
  • or treating the FPGA as a processor that simply executes code “faster.”

The result is designs that are difficult to close timing on, unstable, and inefficient in terms of resource usage. Only by accepting that one is designing a hardware structure rather than a program can the full potential of FPGAs be realized in high-frequency applications.

InTechHouse on architectural scaling: Programmable logic as the turning point in FPGA development

Conscious architectural scaling is a sign of engineering maturity. Moving from an MCU to an FPGA is neither a failure of the existing architecture nor an indication of an overengineered design. It is a natural consequence of growing requirements. An FPGA, therefore, does not replace the MCU. It merely changes the way we think about time and parallelism. For some projects, pushing the software harder and making better use of peripherals will be sufficient. For others, the right decision will be a hybrid architecture or a full migration of critical paths into custom logic.

If you are facing the decision of whether to stay with an MCU or move to an FPGA, the support of our experienced team can significantly shorten the path from concept to a working system. InTechHouse helps translate timing and performance requirements into sound architectural decisions, avoiding both underestimation and unnecessary design complexity. Do not delay your decision and schedule a free consultation today.

See How We’ve Helped Companies Like Yours
Explore our portfolio of successful hardware projects across automotive, medical devices, and IoT. Real case studies with technical details and measurable results.

Browse Our Projects →

FAQ

Does increasing the MCU clock frequency solve high-frequency processing issues?
Usually only temporarily. A higher clock rate does not eliminate the overhead of sequential code execution or the latencies introduced by interrupts and system buses.

Does an FPGA always mean higher performance?
Only when the problem can be parallelized or requires deterministic timing. An FPGA does not speed up every algorithm—it changes the execution model.

Does moving to an FPGA mean abandoning existing code?
No. In most cases, only the timing-critical paths are migrated, while the rest of the system remains implemented in software.

What are the most common mistakes when migrating from an MCU to an FPGA?
Porting algorithms one-to-one without changing the mindset, and underestimating the time required for verification and logic debugging.
