Maximizing Quality Attributes in Resource-Constrained Embedded Systems: Best Practices for Real-Time Operation, Testing, and Security

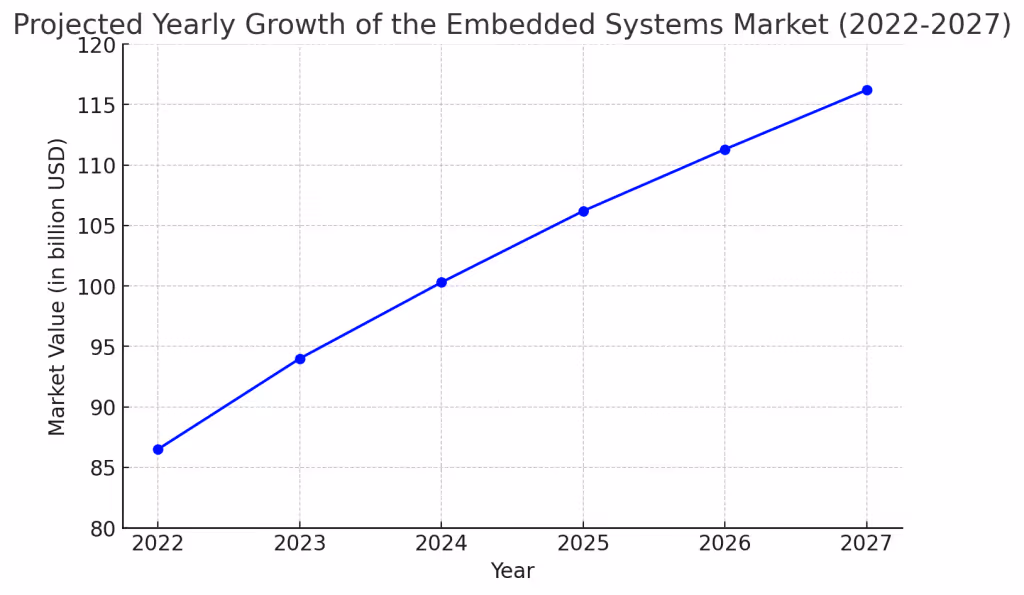

In the field of IT, embedded systems are among the most challenging areas of engineering because they combine hardware and software components working in real-time environments, often with minimal resources. In 2022, the embedded systems market reached USD 86.5 billion and is projected to grow to USD 116.2 billion by 2027. This growth drives increasing demands, particularly in critical sectors such as automotive, healthcare, and industrial.

Ensuring quality and reliability in such systems goes beyond merely running tests – it requires understanding the nuances of hardware, software, the operational environment, and their interactions. As Wayne Wolf aptly stated in his book, “An embedded system is only as good as the reliability of its components and the precision of its timing”. For IT specialists, this presents a challenge that requires a multi-dimensional approach to quality management.

In this article, we will explore advanced methods and techniques for ensuring quality in embedded systems, focusing on practices that truly impact the reliability and resilience of these devices.



1. Deterministic Real-Time Operation: Hardware and Software Optimization in Embedded Systems

One of the key challenges in embedded systems is the need to meet strict real-time requirements. Deterministic behavior means that the system must respond to events within precisely defined timeframes – delays are intolerable. In environments such as robotics control, industrial automation, or aviation, even a few milliseconds of delay can result in critical system failures.

How to ensure this?

  • Critical Path Analysis – Identifying the longest timing paths in the software that directly affect system response times. It’s crucial that the code executes within a fixed time, minimizing latency variability.
  • Use of Real-Time Operating Systems (RTOS) – Real-time operating systems such as FreeRTOS or VxWorks allow for task scheduling and prioritization, which helps control system response times and reduce downtime.

Problems and Pitfalls Related to Deterministic Operation

Although determinism is significant, achieving it can be challenging. The main issues include:

  • Priority Inversion: This occurs when a high-priority task waits for a lower-priority task because the latter is using resources needed by the former. This can be addressed with the Priority Inheritance algorithm.
  • Hardware Interference: In some systems, especially in IoT applications, systems are exposed to electromagnetic interference, which can lead to disruptions in real-time operations. Proper hardware shielding and signal filtering are necessary to ensure deterministic operation.
  • Unpredictability of Memory Access Times (Cache): In systems with dynamic cache management, the time required to access data can be unpredictable. Some applications use dedicated techniques, such as cache lockdown, to minimize these uncertainties.

2. Many Embedded Testing: Quality Attributes in Validating Extreme Scenarios

Every embedded system has operational limits, both in terms of hardware (e.g., temperature, humidity) and software (e.g., CPU load, available memory). Boundary testing checks how the system reacts under extreme conditions, often more demanding than regular use. 39% of embedded engineers indicate that the biggest challenge in designing embedded systems is just testing and system verification.

Key Techniques:

  • Fuzz Testing – Involves feeding the system with random, often incorrect input data to trigger unexpected behaviors and identify potential security vulnerabilities. This is particularly effective in testing embedded software, which must be resilient to unpredictable data from external sources.
  • Stress Testing – Aims to maximize system load and determine how long it can operate under overload. This can reveal potential issues with memory allocation, buffer overflows, or excessive interrupts.
  • Load and Performance Testing: Boundary load tests check how the system performs when it reaches the limits of its computational, memory, or power resources.
    • CPU Performance Testing – Evaluating how the processor handles maximum load. The system can be subjected to extreme computational demands to determine if overheating or slowdowns occur.
    • Embedded Memory Testing – Assessing how the system manages limited memory (RAM and ROM), which is particularly important in embedded systems with heavily constrained resources. Memory leaks or allocation errors can lead to system failures.
    • Power Load Testing – Evaluating how the system responds to variable power sources, such as voltage spikes, as well as minimal power levels, which is especially critical for battery-powered devices.

3. Achieving a Balance Between Security and Reliability in Embedded Systems

Securing embedded systems, especially those connected to the network (IoT), is one of the greatest challenges today. Embedded devices, often small and energy-efficient, are vulnerable to brute-force attacks, communication hijacking, or physical manipulation.

How to ensure security in embedded systems?

  • Root of Trust (RoT) – A hardware mechanism that ensures the system starts from a trusted source. RoT guarantees secure system boot, data encryption, and access control to critical resources.
  • Secure Boot: This technique ensures that an embedded system or IoT device boots only with trusted and verified software. Every part of the software, from the bootloader to the operating system and applications, is verified using cryptographic digital signatures,
  • End-to-End Encryption (E2EE): The use of end-to-end encryption ensures that data is encrypted throughout the entire communication path, from the sender to the recipient. Even if the data is intercepted during transmission, it cannot be read without the appropriate key,
  • TLS/SSL: The TLS (Transport Layer Security) protocol, or its predecessor SSL (Secure Sockets Layer), are standard encryption mechanisms for communication between IoT devices and cloud servers. Implementing TLS ensures that data transmitted by devices is protected from “man-in-the-middle” (MITM) attacks,
  • Shielding: Some devices may be exposed to electromagnetic attacks (e.g., signal interference or attempts to read data), so shielding is required to protect against unauthorized access to data and functions,
  • Secure OTA (Over-the-Air) Updates – One of the most meaningful security elements in IoT embedded devices is the ability to securely update software. OTA updates should be cryptographically signed and protected against tampering during transmission.

4. Software Quality: Static and Dynamic Code Analysis

Code analysis is necessary to ensure the quality of embedded software, especially in the context of stringent requirements regarding reliability, security, and performance. Various code analysis techniques are used to detect errors early in the software development process. The two most commonly used methods are static analysis and dynamic analysis of code.

These techniques aim to minimize the number of errors that may occur after system deployment, which is particularly important in embedded systems where it is often difficult or even impossible to perform updates after deployment.

  • Static Analysis – Tools like Cppcheck, Clang Static Analyzer, or Coverity allow the detection of issues in the code before it runs. Static analysis helps identify memory leaks, unused variables, dangerous pointers, or potential deadlocks.
  • Dynamic Analysis – In embedded systems, dynamic code analysis (e.g., Valgrind or AddressSanitizer) is especially important during integration and simulation tests. This helps identify issues related to memory allocation, improper interrupt handling, or multithreading errors.

5. CI/CD Integration in Embedded Systems: Overview and Design Challenges

While CI/CD (Continuous Integration/Continuous Deployment) is mainly associated with traditional web applications, it also applies to embedded systems. Introducing DevOps practices to embedded device development can significantly accelerate testing and deployment processes.

  • Automated Unit and Integration Tests – CI/CD systems such as Jenkins or GitLab CI enable automated test execution at various stages of project development. Automatic code testing after each compilation minimizes the risk of regression,
  • Version Management – Deployment automation in embedded systems must also include firmware version management, which enables tracking of which devices are running specific software versions and ensures consistency throughout the product’s lifecycle,
  • Simulations and Hardware Testing – Thanks to hardware simulators and embedded environment emulation tools (e.g., QEMU), hardware and firmware tests can be automated, which is critical in systems with real hardware constraints.

6. Memory Management and Optimization in Embedded Product Development Process

In embedded systems, where available RAM or ROM is highly limited, memory management becomes a critical element of quality assurance.

Practical Approaches to Memory Management:

  • Avoid Dynamic Memory Allocation – In critical systems (e.g., medical devices), dynamic memory allocation can lead to fragmentation and resource exhaustion. A better solution is to use static buffers and predictable allocation schemes,
  • Memory and Code Optimization Techniques – Compilers like GCC or IAR offer various levels of code optimization that allow for reducing the size of the resulting binary code or improving its performance. Code fragments that are never executed can also be eliminated through Dead Code Elimination. It should be noted that reducing the number of main memory read operations using locality optimization—which involves arranging data in memory so that it is as close together as possible (e.g., in the same cache area)—can significantly improve system performance,
  • Monitoring Stack and Heap Usage – Monitoring tools (e.g., IAR Embedded Workbench or ARM Keil) help analyze and optimize memory usage during application runtime. Avoiding stack overflows is an essential element in designing reliable systems.

InTechHouse: Complete System Designed To Perform

Ultimately, reliable and resilient embedded systems are the result of a well-organized design process that takes into account both technical constraints and long-term user requirements. In today’s increasingly automated and connected world, the quality of embedded systems has become a fundamental factor determining the success of the entire device.

InTechHouse is an expert in delivering comprehensive technological solutions, not only in the field of embedded systems. With many years of experience in the IT industry, we offer innovative services including software design, system integration, IoT product development, and hardware engineering. Our team of specialists works at every stage of the project lifecycle, from concept to deployment, ensuring top quality and technical support. InTechHouse is your go-to partner for transforming innovative ideas into real, high-performing products. Leverage our expertise to bring your vision to life—schedule your free consultation.

FAQ

How does quality in embedded systems differ from quality in traditional applications?

Embedded systems operate in specific environments with limited resources, such as memory, computational power, and energy. They often require deterministic response times and flawless real-time operation. Quality in embedded systems means reliability, efficient memory management, and security under various, often challenging, working conditions.

What are the most common errors that can affect the quality of an embedded system?

The most common errors include: buffer overflow, memory leaks, inconsistent interrupt management, thread synchronization issues, and lack of testing on real hardware.

What is deterministic real-time operation and why is it important?

Deterministic operation means that an embedded system responds to events within a precisely defined time frame, regardless of load or conditions. This is crucial in applications such as air traffic control, where even minor delays can lead to serious consequences.

What are the biggest security threats to embedded systems?

The biggest threats include: “man-in-the-middle” (MITM) attacks, where a hacker intercepts communication between devices, DDoS attacks that can exploit infected IoT devices to disrupt network operations, and outdated software that has not been updated.
