Every printed circuit board is much more than just a collection of traces and components. It’s a record of engineering logic, design decisions, and creativity etched in copper. PCB reverse engineering allows us to reconstruct that logic and uncover how the circuit truly works.
Have you ever looked at a circuit board and wondered what secrets lie beneath its layers of copper and silicon? Contrary to popular belief, this process isn’t reserved only for experienced engineers with access to advanced laboratories. With the right approach and a basic understanding of electronics, even beginners can get started. Using just a few low-cost practical tools, they can methodically analyze a circuit board and grasp its inner workings.
This article serves as a practical guide to the fundamentals of PCB reverse engineering. Instead of abstract definitions and theory, we’ll focus on how the process actually looks in practice. The whole process starts with identifying components and tracing connections, and ends with creating a clear PCB schematic. You’ll learn how to think like a designer, avoid common mistakes, and apply the knowledge you gain to your own projects.
Printed Circuit Board (PCB) reverse engineering is an advanced process of physical and electrical analysis of an existing electronic system. Its goal is to reconstruct the system’s structure, schematic diagram, and functional principles. It involves identifying components, analyzing top layer and inner layer connections, recreating circuit schematics, and modeling the functional behavior of the device. The goal of reverse engineering is not mere duplication of a design but a deep understanding of its architectural and technological foundations. This knowledge is essential for diagnostics, maintenance, and the development of compatible or improved electronic solutions.
PCB reverse engineering has a wide range of applications, including electronic device repair, reconstruction of undocumented projects, hardware security analysis, and technical education. However, it is crucial to remain aware of legal and ethical considerations. Reverse engineering should be applied responsibly, serving research, educational, and maintenance purposes, while respecting intellectual property rights and fair competition principles.
Effective PCB reverse engineering requires an appropriate set of hardware tools and specialized software. The key instruments used in this process include:
During the component identification stage, databases, manufacturer catalogs, and SMD code search engines prove extremely useful. They enable quick recognition of unknown components, determination of their electrical parameters, and selection of suitable replacements.
If you want to know more about multilayer PCB design, read our article:
Essential Guide to Multilayer PCB Design for Efficient Electronics
The process of PCB reverse engineering requires a systematic approach and precise documentation at every stage. But where do you actually begin when faced with a complex board full of tiny components and intricate connections? We’re glad you asked. Here’s the answer.
The first step involves preparing the board and gathering documentation. This includes thoroughly cleaning the PCB surface, photographing both sides in high resolution, and taking detailed notes regarding numbering, trace colors, and component placement. „Documentation is king”, as said Joe Grand (hardware explorer). Well-prepared documentation forms the foundation for further analysis and helps prevent errors during reconstruction.
The next stage is component labeling and mapping. Each component should be identified, labeled, and assigned to its correct position on the board. At this stage, a Bill of Materials (BOM) is created, listing all parts necessary for later schematic analysis and potential board reconstruction. Mapping helps to understand the circuit’s structure and provides essential data for schematic recreation.
After that, the process moves to scanning and layer reconstruction. This requires removing all components and scanning the PCB all the layers, one by one. This approach allows the reconstruction of trace layouts, vias, and interlayer connections. The collected bitmap images of the layers are then imported into CAD (computer-aided design) software for topological reconstruction of the board.
In some cases, when internal layers are inaccessible or encapsulated, engineers use destructive process techniques. This controlled approach involves physically separating, sanding, or chemically etching PCB layers to expose hidden structures. This method, often referred to as destructive reverse engineering, permanently damages the original board but provides access to critical design information that cannot be obtained otherwise.
Once the layers have been reconstructed, the next step is schematic creation. Based on the connection map and component layout, the logical circuit diagram is recreated, which reveals the device’s functional principles.
The final stage involves validation and testing. The recreated schematic must be verified for connection errors and consistency with the original design. Electrical and functional testing then confirm the accuracy of the analysis. They ensure that the reconstructed project is ready for further use, modification, or replication in research and development. This stage can also be quite time-consuming, as it often requires multiple test iterations and careful cross-checking against the original circuitry.
The next stage of reverse engineering involves the analysis of signal and power traces. Identifying power and ground lines — along with internal power planes — is the starting point for deeper circuit interpretation. Power traces are usually wider, symmetrically routed, and often distributed across multiple PCB layers. Analyzing their layout helps determine which components are powered directly and which receive power through a voltage regulator or filters. A clear understanding of power topology also allows for assessing the circuit’s energy efficiency and identifying potential failure points such as short circuits or voltage drops.
The following step is the analysis of digital and analog circuits. In digital systems, it is crucial to recognize:
Identifying these enables engineers to determine the operational logic of microcontrollers, memory units, or communication interfaces. In analog systems, attention is focused on:
Analyzing their configuration helps to understand how signals are processed and to evaluate the quality of the analog path, for instance, in terms of noise levels or distortion.
In practice, connection analysis often requires reconstructing parts of the circuit in CAD software or a SPICE simulator. This allows verification of the recreated schematic and evaluation of the circuit’s behavior under various operating conditions. For example, analyzing power connections in a microcontroller section can reveal incorrect grounding paths or insufficient signal filtering. Similarly, reconstructing the analog signal path in an audio amplifier helps identify coupling capacitor values and test points. Such reconstruction is a crucial stage in fully understanding PCB functionality and preparing the board for further research, optimization, or modernization.
The process of PCB reverse engineering, despite the use of modern tools and software, carries certain risks of errors that can significantly affect the accuracy of the final design. So what are the most common mistakes that can derail this process? How can you avoid them?
One of the most frequent issues involves difficulties in reading PCB layers. In multilayer boards with dense trace routing and numerous vias, distinguishing individual layers can be extremely challenging. Improper scanning or inaccurate alignment of layer images often leads to connection reconstruction errors. To prevent this, it is essential to:
Another common issue is incorrect identification of electronic components. This usually results from unreadable SMD markings, worn-out labels, or the use of custom parts. Assigning an incorrect type or value to a component can completely disrupt the operation of the reconstructed circuit. Effective preventive measures include:
A third major problem is insufficient documentation of work stages. Omitting notes on component numbering, orientation, or trace configuration complicates later analysis and project validation. Every stage, from board cleaning to final testing, should be carefully documented through notes, photographs, or worksheets. All data generated during this process should be organized and securely stored, as proper data archiving helps avoid mistakes and enables re-verification in case of uncertainties.
Avoiding these errors requires patience, precision, and a systematic approach. These qualities ultimately determine the quality, accuracy, and reliability of the entire PCB reverse engineering process.
As one gains experience in reverse engineering, it becomes necessary to master more complex methods, especially when analyzing modern, densely packed electronic systems. One important area to mention is the reverse engineering of BGA and SMD packages. These components contain a large number of connections hidden beneath the package, making direct visual inspection impossible. In such cases, engineers employ:
This process demands high precision and considerable experience in microassembly work.
In some cases, engineers also explore alternatives to destructive analysis. These include non-contact scanning or hybrid optical imaging, which help preserve the integrity of the original PCB while still providing accurate structural data.
An equally advanced skill is reconstructing designs without available schematics. This involves recreating the functional logic of a device based solely on the physical structure of the PCB and the observation of its electrical signals during operation. The process integrates knowledge of electronics, diagnostics, and circuit design, representing one of the highest levels of expertise in reverse engineering.
Another emerging area involves automated connection recognition techniques using artificial intelligence. Machine learning–based software can analyze PCB images, identify components, and generate preliminary circuit schematics. In professional workflows, AI-based tools can even generate partial Gerber files directly from high-resolution board images, dramatically speeding up the reconstruction process.
Recent studies confirm the growing efficiency of such methods. For instance, in one deep learning experiment, the PCB_SS model achieved an average error rate of only 7.82% when tested on the Label_4000 dataset. This demonstrates that AI-driven image recognition is already approaching practical accuracy levels suitable for reverse-engineering workflows. It significantly reduces manual analysis time and minimizes human error.

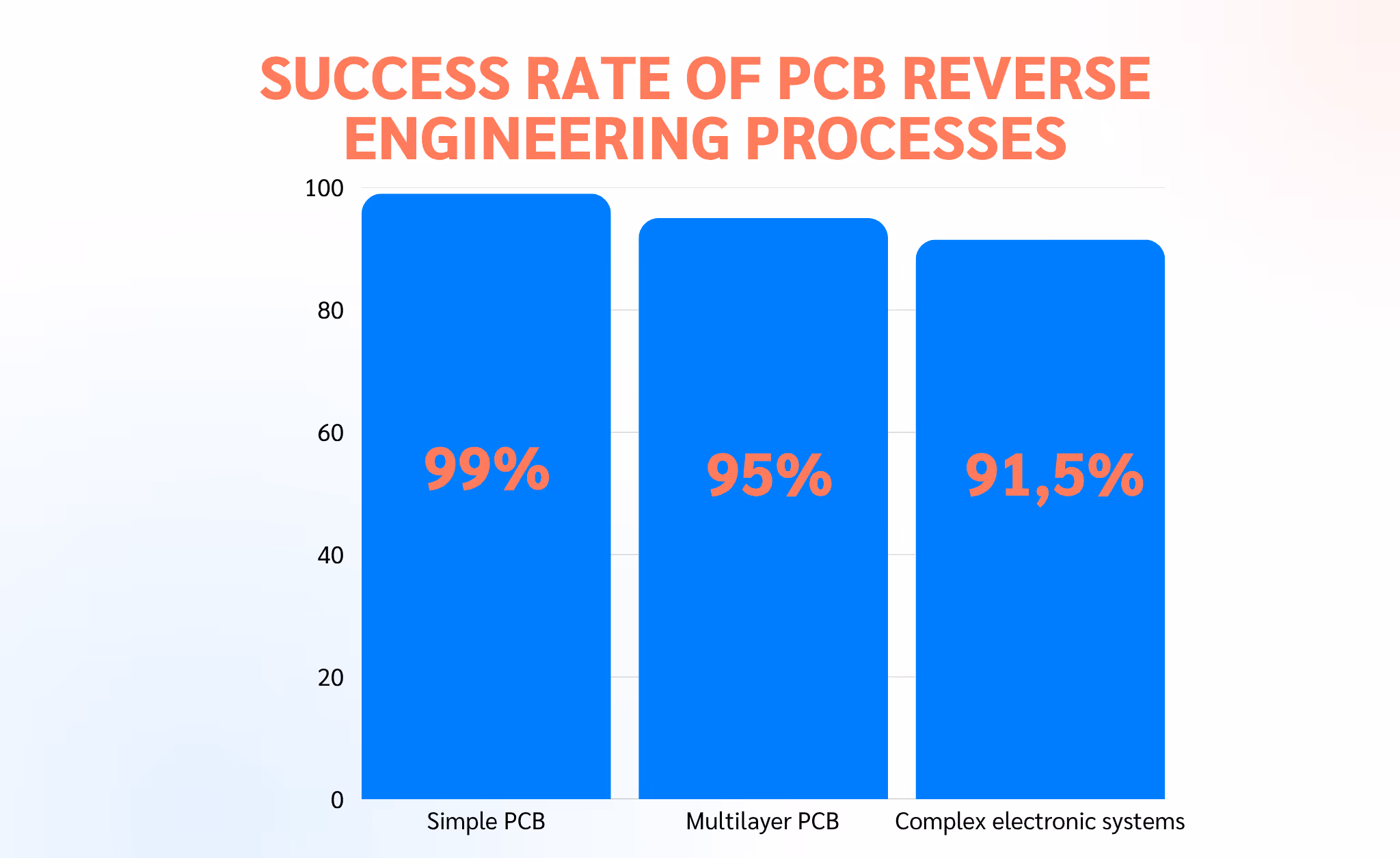

In a world where electronics evolve faster than ever before, the ability to consciously analyze and reconstruct printed circuit boards has become an invaluable asset. Although the process can be demanding, it brings immense satisfaction. It allows you to uncover hidden solutions, draw inspiration from others’ designs, and create your own increasingly refined constructions.
Trust InTechHouse, a company that has been supporting the technological growth of businesses in Poland and abroad for years. By choosing InTechHouse, you gain a partner who truly understands your needs. We focus on quality, innovation, and a personalized approach, ensuring that every solution is tailored to your specific business goals. Don’t wait. Schedule your free technology consultation today and discover what we can offer you.
Is PCB reverse engineering legal?
It depends on the purpose. For learning, diagnostics, repair, or compatibility – usually yes. However, copying someone else’s designs for commercial use may violate copyright or patent laws. It’s always best to check local regulations.
How long does it take to recreate a simple PCB?
For a beginner, it can take anywhere from a few hours to a few days, depending on the complexity and number of components. With experience, this time can be reduced several times.
Can a PCB photo be used for automatic trace recognition?
Yes, there are software tools that use computer vision algorithms to help semi-automatically reconstruct a PCB’s topology, such as Reverse Engineering Tools or OpenCV PCB Analyzer. However, manual verification of the results is still required.
How can I protect my PCB designs from reverse engineering?
You can apply techniques that make analysis more difficult: multilayer designs, connection masking, epoxy potting, conformal coating, or obfuscating component markings. However, no protection method is 100% foolproof.
Is programming knowledge necessary for PCB reverse engineering?
Not always, but a basic understanding of digital electronics and microcontrollers is very helpful. Knowing how communication buses work (SPI, I²C, UART) makes it easier to interpret connections on the board.
